Available device versions:

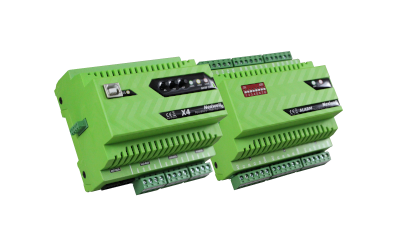

Nexo system main board
The Nexo main board is the heart of building automation. It makes all decisions in the system. Main board is responsible for the alarm system, lighting, blinds, heating, air conditioning, multi-room and video intercom. The central controls the flow of information from programmable switches and mobile applications. Thanks to access to the Internet and the GSM system, it can inform users about current issues via SMS or the NexoVision+ application.
UWAGA – Aktualizacja oprogramowania Nexo X1 i X2
W związku z nową generacją oprogramowania przeznaczonego dla płyt głównych X3 oraz X4, aktualizacje jednostek poprzednich – generacji X1 oraz X2 – wymagają w pierwszej kolejności kontaktu z naszym działem wsparcia technicznego, w celu ustalenia przebiegu procedury wymiany oprogramowania.
The most important product features:
- Touch panel interface (up to 8 panels)
- Expansion card interface (up to 32 cards)
- USB connector (PC-Link)
- Cooperation with the Remote Panel software
- Cooperation with NexoUpdater software
- Energy managed system, emergency battery support
- Control panel operation status LEDs, service buttons
- The housing is adapted for mounting on a DIN rail (TH-35)
- Integrated alarm system (16 partitions)
- Automation (500 logics)
- System event history
- 20 system inputs working in mode:
- NO / NC
- EOL NC
- 2EOL NC 10k / 1k1
- Analog 0-100
- Number of pulses (1 second / 10 seconds)
- Pulse speed
- Two high-current outputs for operating the acoustic-optical signaling device
- Parameterization option for high-current outputs
- Input overload control
The system offers possibility to connect of virtually any sensor and its use at the same time for the operation of the alarm system and the operating conditions of the automation. The most common sensors: PIR movement, rain, humidity, soil moisture, liquid level, flooding, fire protection, gases, wind force and other.
The Central offers the connection of virtually any sensor and its use at the same time for the operation of the alarm system as well as for the operating conditions of the automation. Thanks to the alarm system integration, many functions unavailable in other automation systems become possible. Window opening sensors can not only act as an alarm system, but also can control heating or recuperation. And so when You open the window, ventilation automatically turns off because there is no need for heat recovery during ventilation. When we open the window on a winter day, the heating will also turn off in the given room. Integration also applies to motion sensors or presence sensors. On the one hand, we use them for an alarm system, but on the other, the system uses data to manage lighting. If there is nobody in the room, the light is turned off automatically

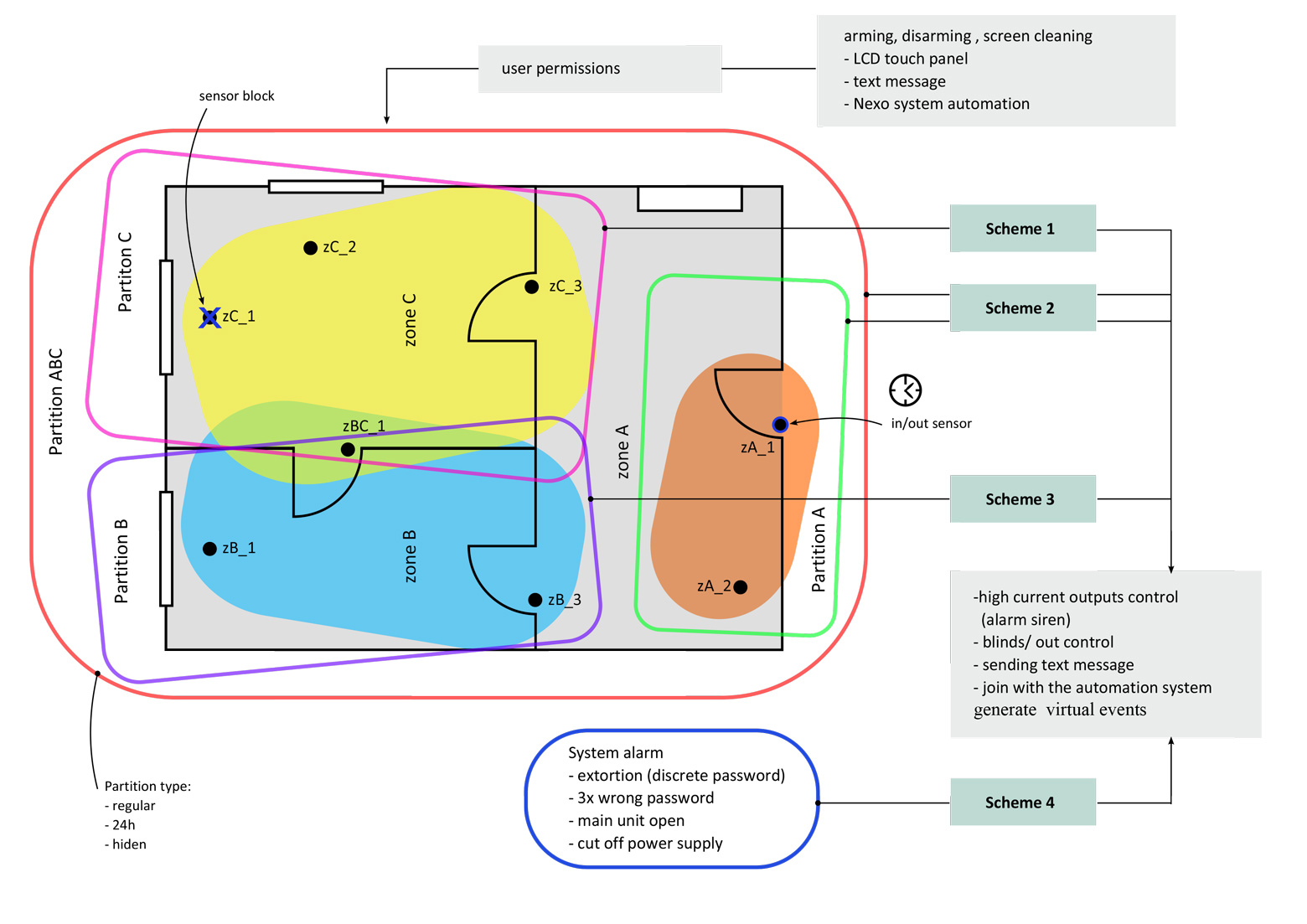

The alarm system integrated with the system main board is a modern security system for your home. It allows the building to be divided into many zones that can be part of independent alarm partitions, e.g. night, garden or the whole house. The construction of partitions and partitions does not exclude automatically armed parts common to all alarms such as corridors or staircases. The alarm system is fully integrated with building automation, with programmable switches and mobile applications. Supports up to 32 zones and 16 partitions. Event history and prioritization of alarm patterns for regular, 24-hour and hidden partitions will make your home your stronghold. The applied solutions allowed for obtaining the C class certificate issued by the TECHOM Property Protection Technology Development Department.
The alarm module also has extensive support for system alarms that define the system behavior in the event of alarms other than burglary. Entering an incorrect password three times, mains power outage, unauthorized opening of the switchboard or forcing an intruder to disarm the alarm (so-called silent alarm) are only examples after which the system can take any previously programmed actions.
The combination of the alarm system with the automation system provides many tools, both for notification and taking specific actions in the event of an alarm. In the event of a burglary alarm, the most important thing is to inform the security service about the event and to activate the optical and audible sirens. Other equally important is to inform the User via SMS, start lighting pulsing in all rooms and properties, or flashes of RGB lighting in red.
Different types of alarm partitions require different operation scenarios to be run when activated. For example, for a 24-hour partition in the event of a flood, the alarm operation does not require the intervention of third parties but only the notification of household members and the shut-off of the water tap. The fire alarm is, however, more restrictive and, in addition to the typical alarm action, requires the blinds to be raised, enabling faster evacuation.
The basis of any alarm system is emergency power supply in the event of accidental or intentional power cut. In both cases, Nexo will switch to battery operation. Power failure, its resumption or short time to discharge the battery are also the basis for sending an informative SMS.
To Nexo system central it is possible to connected 8 touch panels or partition keypads. These can be physical devices or remote panels installed as applications on PCs. Touch panels are treated by the control panel as user terminals. For this reason, all automation data is stored in the control panel’s memory. Thanks to this construction, we can disconnect the panel from the system, install a new one and after starting it will have exactly the same function as its predecessor
Expansion cards are nothing more than matching the central to our needs. In other words, we must equip it with appropriate helpers implementing the functionality desired by the user.
The central equipped with the Multimedia card will be able to operate the video phone. Adding such a skill to system results in numerous amenities. Well, when the alarm is armed, the central will realize that there is no one at home and will switch any guests calling the gate to the owner’s phone. When the neighbor calls and we are on vacation, he lights up the porch, in the garden and connects the conversation on the phone so that the neighbor has the impression that everyone is at home. When the central detects your smartphone through the intercom cassette, it will automatically open the gate, the garage and raise the blinds.
Imagine what you will do if you teach the system how to use the internet. It will be able to send and provide all information about devices, lights or temperature to your phone or tablet, regardless of where in the world you are. What’s more, you’ll have control over everything that happens on your property. You can also give her orders: for example “I’ll be home early today” and the control panel, knowing about this fact, will turn on the heating, open the blinds, turn on the light and turn on the music.
The central has numerous tamper protection. One of them is sensor that controls the switchboard door. If the alarm system is armed, each opening of the switchgear will result in an alarm and a security call for the building. Another type of protection is the power supply control system for peripheral devices. If the intruder tears the LCD panel from the wall and shorts out the communication cable, system will detect this fact and cut off the power supply from this interface – thus preventing the battery from discharging the emergency power supply.
In the event of a central failure, the individual devices will operate autonomously. The lighting, blinds or relay modules will function in the basic scope without the help of the main unit. They will enable users to operate the roller shutter or heating lights with traditional switches.
The central is equipped with three technical buttons facilitating the system installation process. Thanks to them, technician or user can deactivate the interface of panels or expansion cards during system operation in order to connect system components live. Status LEDs informing the service technician which interface is inactive and how the control panel works are also helpful in this process.
The central is equipped with a connector enabling its mounting in a switchboard on a DIN rail (TH-35). In addition, each cable is connected to central via a plug that simplifies wiring and increases the reliability of the installation as a whole.
Nexo is an advanced building automation system that allows you to program virtually any operation scenario. The tools at his disposal and the interactions between them repeatedly multiply his nominal capabilities, making him one of the most powerful BMS systems on the market.
Basic tools that determine the system behavior in situations specified by the installer. Using a logical table of truth, thats binds conditions with actions. A single truth table can contain up to 4 conditions and up to 5 actions. It contains all possible logical combinations of conditions, which offers maximum flexibility in defining system behavior in specific situations. A wide list of both conditions and actions allows for precise implementation of the requirements set by the System User.
Tools for grouping several conditions to obtain a single true / false status. Complex states are used in logics as input conditions.
They allow you to group several actions at set intervals to obtain a single action. Sequence operation can be interrupted, continued or restarted. Often their state is used as an input condition for logics.
The system's volatile memory cells have values from 0 to 9999. Modified by the system, they condition the behavior of automation programs.
